KC4QLP/B
28.260.0  MHz

Here is what to listen for:    10 miles and beyond distance

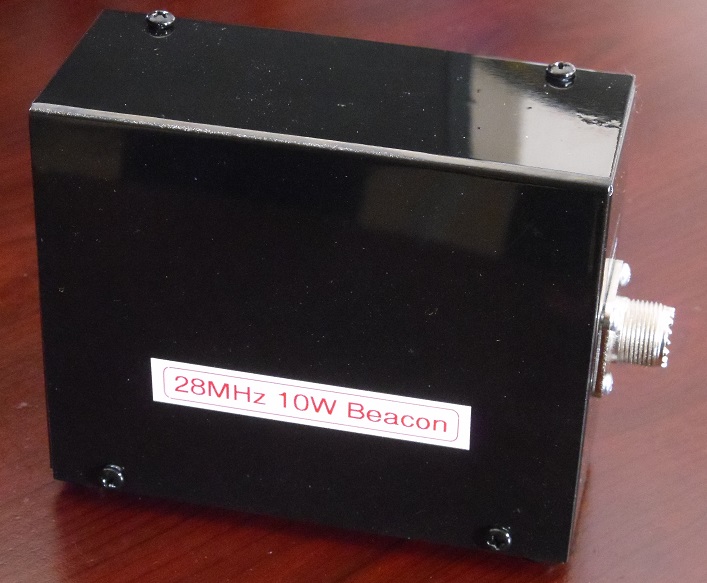

      1) Shot one of three;. Above you can see the
      transmitter as built by AA7DJ .


2) Shot two of three;. Above you can see the
      transmitter as built by AA7DJ .


3) Shot three of three;. Above you can see
      transmitter as built by AA7DJ .


      4) Transmitter power just a tad over 10 watts.
      Transmitter as built by AA7DJ .


5) DC voltage and current draw while in operation.
      Transmitter as built by AA7DJ .


6) The beacons actual carrier frequency.
      Transmitter as built by AA7DJ .


7) First harmonic.
      Transmitter as built by AA7DJ .


8) Second harmonic.
      Transmitter as built by AA7DJ .


9) Operating temperature after one hour of operation.
      Transmitter as built by AA7DJ .


10) 1st internal view.
      Transmitter as built by AA7DJ .


11) 2nd internal view.
      Transmitter as built by AA7DJ .



 13) View of the Sirio Tornado High Gain 5/8 Wave Base Antenna - made in Italy!.
          Radiation Pattern: Non-Directional.
          This antenna went into service on March 28, 2023 and replaced a Procomm-12' BASE STATION ANTENNA.
Local coverage has increased from approximately 15 miles to 30 miles plus listening via a mobile radio. Your chances of hearing this beacon should be much better now.



 14) View of the Procomm-12' BASE STATION ANTENNA - made in the USA!.
          Radiation Pattern: Non-Directional.
          This antenna went into service on April 1, 2022 and replaced a temporary 102" stainless steel whip antenna. This Procomm-12' BASE STATION ANTENNA was taken out of service on March 28, 2023. The performance of this antenna is less than great. Local coverage was barely 15 miles listening via mobile. The ground plane kit did not help.
After running this antenna for nearly one year, I can not recommend this antenna. Performance for even a shorten antenna was poor and tuning the antenna was a pain. I've never had an antenna that tuned so poorly and was so difficult to achieve.




All reports will be appreciated via
  eQSL.cc and e-mail [kc4qlpbeacon@gmail.com]

Where the KC4QLP/B 28.260 mhz beacon has been spotted so far on reverse beacon. If you hear it, send us an eQSL!
